Callies Compstar Forged Duramax Upgraded Replacement Crankshaft

D333M81-CS - 4C
Fits 2001-2016 Chevy / GMC 6.6L Duramax
Shipping: Due to Weight and Dimensions, This Product is Excluded from Free Shipping
Pricing: $1,599.00

Customize Your Item

- Crank Gear Options -
 * required


Part# D333M81-CS

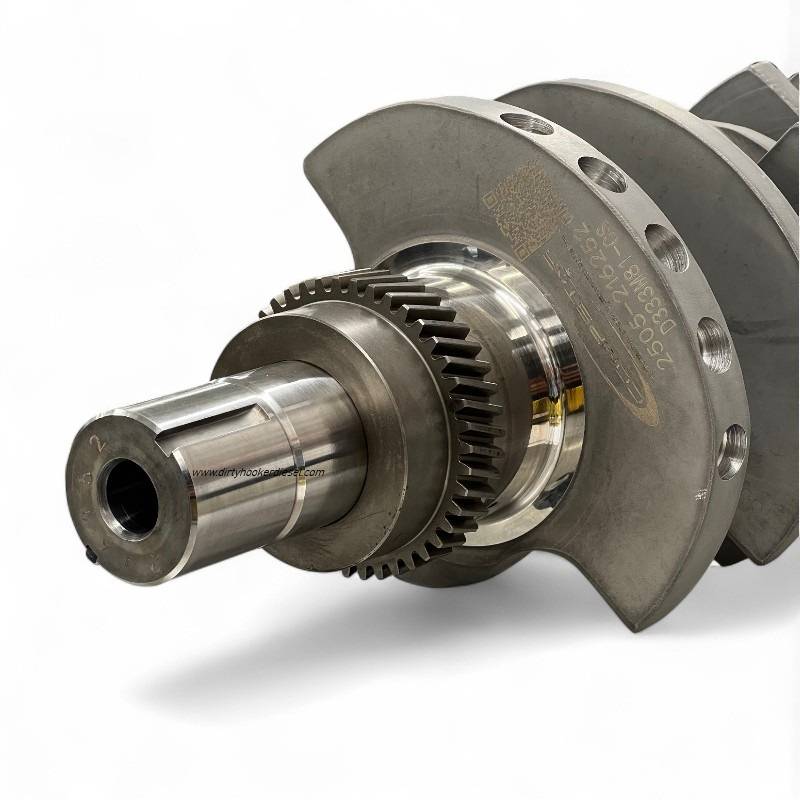

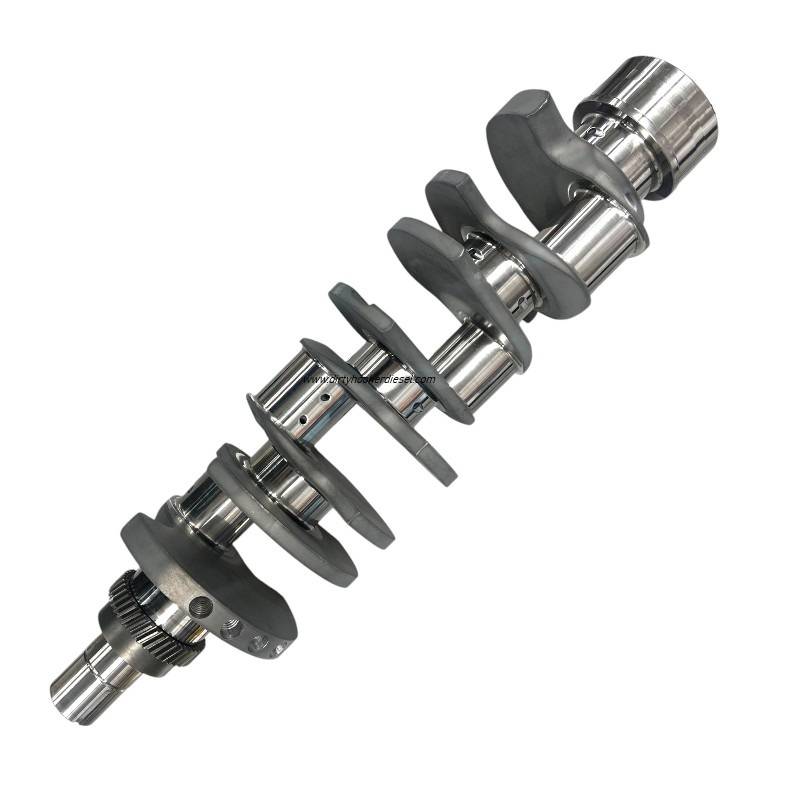

Callies Compstar crankshafts are a very popular upgrade amongst engine builds here at DHD. The Compstar Duramax crank is designed to be substantially stronger than the OE versions.  This increase in strength centers around unique machining features, stronger steel material and a deeper nitride layer.

Unlike the Ultra Billet Callies cranks, Compstar crankshafts are intended to be externally balanced with stock style damper and flywheel configurations. Billet flywheels and upgraded dampeners also work well with Compstars.

Unlike the LB7 stock crank, Callies modified the Compstar counterweights to be able to clear and fit in all years with stock rods and pistons.

These cranks come direct from Callies with no crank gear installed. If you need a crank gear installed, select that service from the menu above.

Our most popular Compstar builds get paired with:

  • Mahle Race Cast Pistons
  • Socal Street Rods
  • Socal 3388 Camshaft
  • Manton Pushrods
  • Manton Valve Springs

Durastar advantages:

  1. Deep DuraCase nitride treatment that is durability and wear enhancing
  2. Large True Form fillet radii in all journals
  3. Keyed Shear Proof timing gear fit
  4. Drilled rod journals for reduced inertia and ease of balance
  5. Stock 3.898” stroke with OEM journal diameters and width
  6. Machined from 4340, through hardened steel
  7. Dual keyed damper fit
  8. Conservatively rated for 1200HP but have seen trucks well over the 1500HP mark
  9. Will accept OEM post and flange bolts
  10. Machined to accept OEM flywheels / flexplates
  11. All journals are polished to a 6Ra or finer finish
  12. Main bearing oil holes are machined with lead-ins for enhanced cold start oil flow to rod journals
  13. GM timing gears are available


  • Main and Rod Bearings are not included. Thrust washers should be hand fit for proper clearances prior to assembly

Shipping Information

  • Item Requires Shipping
  • 85.0 lbs.
  • W12.0000” x H12.0000” x L35.0000”
  • Due to Weight and Dimensions, This Product is Excluded from Free Shipping
