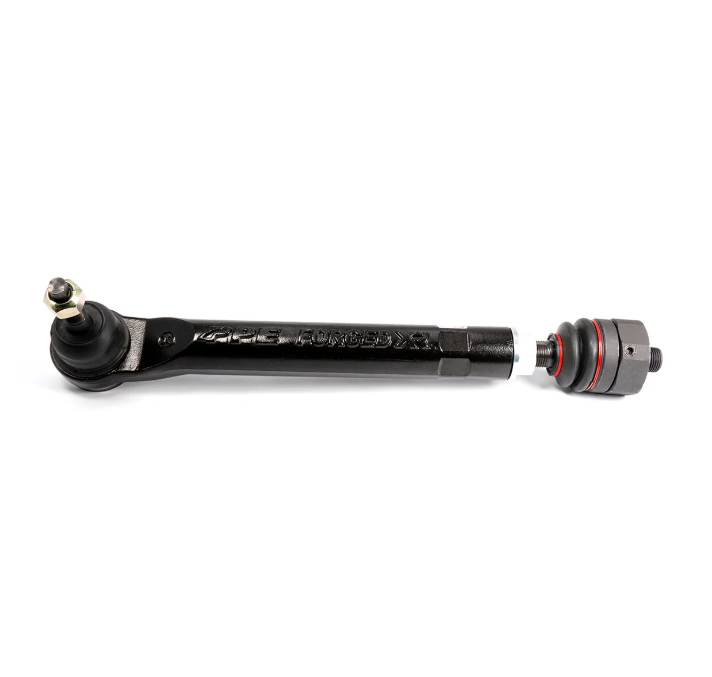

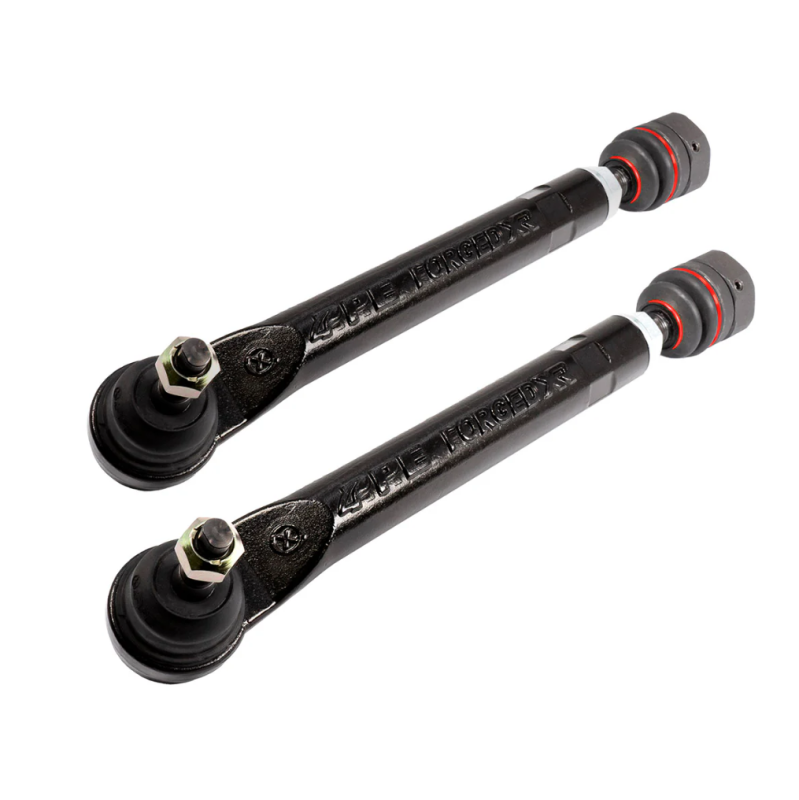

PPE 158032500 Stage 3 XR Series Duramax Tie Rod Assemblies - GM 2001-2010

These tie rods are overkill for some, but when it comes to steering components, failure is not an option. These tie rod assemblies are the best of the best. These forged XR tie rods are the newest version of the super popular stage 3 tie rods. These tie rods come assembled and include the inner and out tie rod. For custom steering applications, the main body of the tie rod can be trimmed up to 1" for an overall shorter length.

Features:

• Extreme-duty forged steel
• Siliconized rubber boots
• Preserves factory articulation angle
• 35% larger, 32-mm ball stud
• 1.6’’ forged outer tie rod body – 50% larger than stock
• 3/4’’ inner tie rod threaded shaft
• Integrated grease fitting

Fitment:

• 2001-2010 GM 2500/3500HD Trucks

NOTICE: PPE Stage3 Tie Rods are engineered to fit GM stock steering components. Some aftermarket steering manufacturers have changed the placement of the tie rod mounting perch on the front spindle, which then requires a shorter tie rod. The Stage3 Tie Rod outers are fully-threaded internally, and may be trimmed to accommodate the relocated aftermarket perch location. An experienced installer should measure to determine the appropriate trim length.

XR Tie Rods supersede prior PPE #158031500
