DP Customs Duramax Billet T6 Turbocharger Pedestal

After the success of the popular "Billet T4 Wastegate Pedestal" with having ZERO failures to date, DPC decided to create something just as tough but that will support larger frame turbochargers capable of making hundreds of more efficient hp.

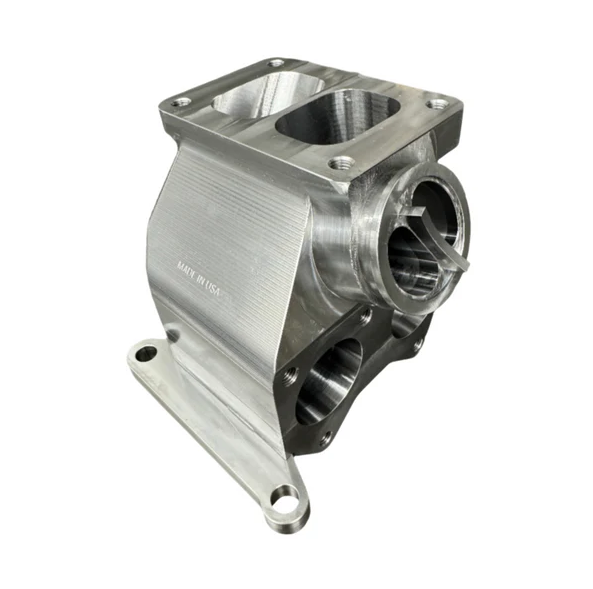

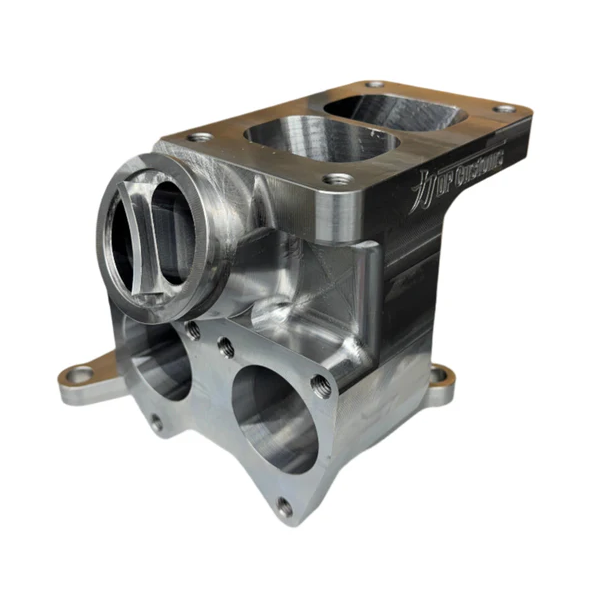

Introducing the WORLDS FIRST Duramax Billet T6 Wastegate Provisioned Pedestal by DP Customs. After months of engineering, DPC came up with a pedestal that fixed every problem seen with competitors casted or fabricated pedestals. No more cracking or clearance issues and easy wastegate plumbing to name a few! Turbosmart's Hypergate 45MM Wastegate will clear the fuel rail (if applicable fuel pressure sensor) and put the discharge opening in a perfect spot for dumping into the atmosphere through the hood or into your exhaust through the downpipe. If you do not run a wastegate, simply cap the provision off (caps sold separately) and enjoy a QUALITY Billet T6 Pedestal. With an easily removable base, this pedestal can also be adapted to use on L5P Duramax blocks. (sold separately)

 Features:

• MADE IN THE USA
• Lifetime Warranty
• 5 Axis Billet Machined
• Removable and adaptable base for fitment and use with the L5P Duramax block (sold separately)
• 5.5” Height
• 1/2” Thick Mounting Base
• Heavy Duty Exhaust Channel Walls
• 45mm Hypergate Wastegate Provision Flange
• 3/4” T6 Flange
• -12AN turbo oil drain clearance
• M10x1.5 Thread
• High Flowing Internal Design
• LB7 Intake Runner Clearance

Fitment:

2001-2026 LB7 LLY LBZ LMM LML (L5P Duramax fitment w/ separate base & uppipe modification)

Wastegate Fitment:
Turbosmart Hypergate 44/45mm Wastegate

Install Kit (Optional, Select from menu)

All gaskets/hardware needed to install the DP Customs Billet T4 Wastegate Pedestal. This kit also includes a billet wastegate provision plug if you are not using a wastegate.

Includes:

• Borg Warner T4 Gasket
• M10x1.5 Studs/Nuts
• Turbosmart 44/45mm Clamp
• UpPipe Gaskets
• Pedestal/Block Bolts

*TACK WELD OR STAKE BASE ALLEN BOLTS TO PREVENT FROM BACKING OUT*

This product is intended for race/offroad use only, use of vehicle with product installed on public road/highway is STRICTLY FORBIDDEN. DP Customs is not liable if product is used in non compliant manner.
