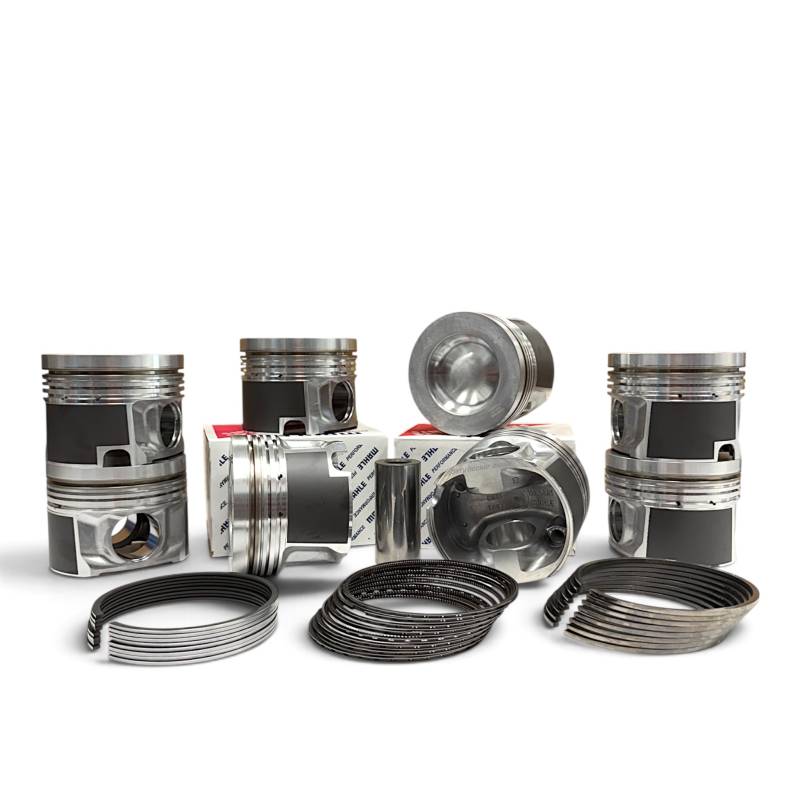

Mahle Motorsport L5P Duramax Delipped Performance Race Cast Piston Set 2017-2024

Mahle Motorsports pistons are the perfect stock replacement option for Duramax guys looking to make up to 1000HP. Theses delipped pistons disperse heat much better then stock and the coated skirts ensure excellent skirt wear and oil control. We install these pistons in many of our entry level builds where customers have small to medium injector and turbo upgrades. The Mahle race CAST piston retains an OE like steel top ring land which provides a high resistance to wear unlike forged pistons that only last 15-20,000 miles.

Features:

• Delipped Bowl Cast Pistons
• Machined from OE Castings
• Steel Upper Ring Land
• Grafal (Graphite Impregnated) Coated Skirts
• Includes Mahle Piston Rings Set
• Circlips & Wrist Pins Included
• Excellent for trucks 1000hp and Under

Fitment:

• 2017-2024 6.6L Duramax L5P

Specs:

Compression Ratio in relation to Bore w/o reliefs:

• STD Bore 16.0CR (#197987855)
• .020" Over 16.1CR (#197987875)
• .040" Over 16.2CR (#197987895)
